Airgas - RAD64005617 - RADNOR™ Insulator

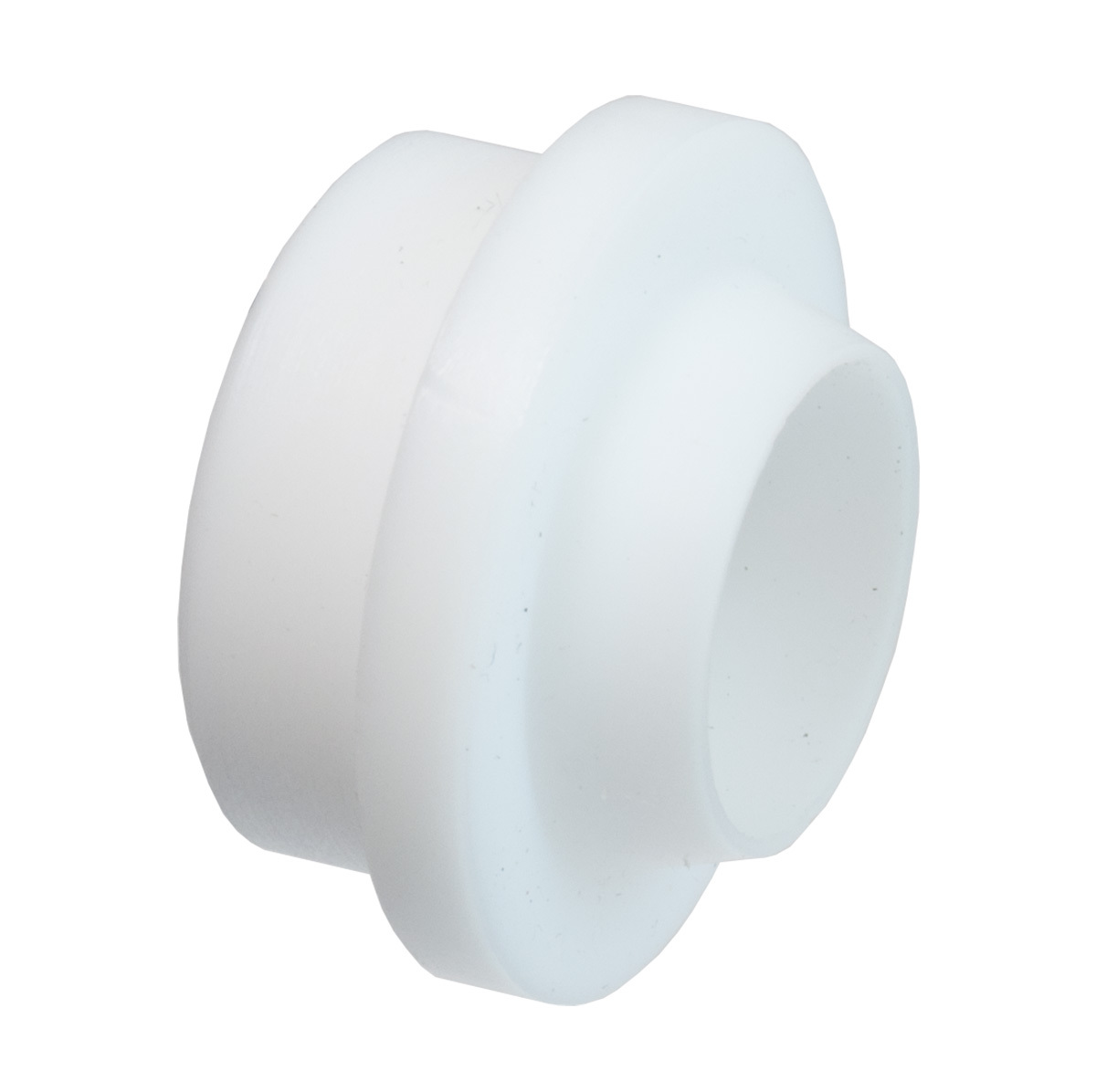

RADNOR™ Insulator

Airgas Part #:RAD64005617

Manufacturer Part #:54N01

$4.13 /Each

Package Size Options

$8.26 Bag 2 Each / Bag

Each

Enter multiples of 2 Each

Gas Lens Seal: Seats between the torch head and gas lens to prevent atmospheric air from entering the gas stream
Dielectric Strength: Provides electrical insulation to prevent high-frequency arcing to the nozzle or torch head
Thermal Stability: Maintains structural integrity under extreme heat of continuous TIG welding
Concentrated Gas Flow: Ensures nozzle seats concentrically to maintain laminar flow benefits
Chemical Resistance: Resists degradation from shielding gases and industrial contaminants
Anti-Arcing: Prevents current leakage during high-frequency starts
Extended Stick-out Support: Facilitates laminar flow allowing for further tungsten electrode extension

Manufacturer: Radnor (Airgas)
Manufacturer Part Number: 54N01
Airgas Part Number: RAD64005617
Industry UPC: 9355457016816
Product Type: TIG Torch Insulator / Gasket
Insulator Size: Medium/Large Gas Lens
Standard Packaging: 2 per pack
Weight: 0.01 lb (4.5g)
Height: 0.75 in (1.9 cm)
Width: 0.54 in (1.37 cm)
Depth: 0.75 in (1.9 cm)
Material: High-Heat Composite Polymers / Polytetrafluoroethylene (PTFE/Teflon)
Duty Cycle: 100%
Polarity: DC Straight Polarity
Torch Series Compatibility: 3-Series (17, 18, 26)
Air-Cooled Torch Compatibility: WP-17, 17F, 17V, A-150, WP-26, 26V, A-200, A-250
Water-Cooled Torch Compatibility: WP-18, 18V, W-350, W-410
Brand Compatibility: Weldcraft, CK Worldwide, Lincoln Electric, Miller, ESAB, TecTorch
Component Compatibility: Used in conjunction with nozzle insulator 18CG (300HS) for gas lens collet bodies; compatible with CK Worldwide 3 Series heat shield

Accessory Type

» Insulator

Torch Amperage

» 150 A
» 160 A
» 175 A
» 180 A
» 200 A
» 220 A
» 230 A
» 250 A
» 300 A
» 310 A
» 320 A
» 350 A

Torch Model

» HW-26
» WP-18
» WP-26
» HW-17
» HW-18
» WP-17
