Airgas - RAD64002230 - RADNOR™ 5/8" X 3/16" X 12" DC Flat Copperclad Arc Gouging Electrode (50 Each Per Box)

Hover cursor over image to view larger picture

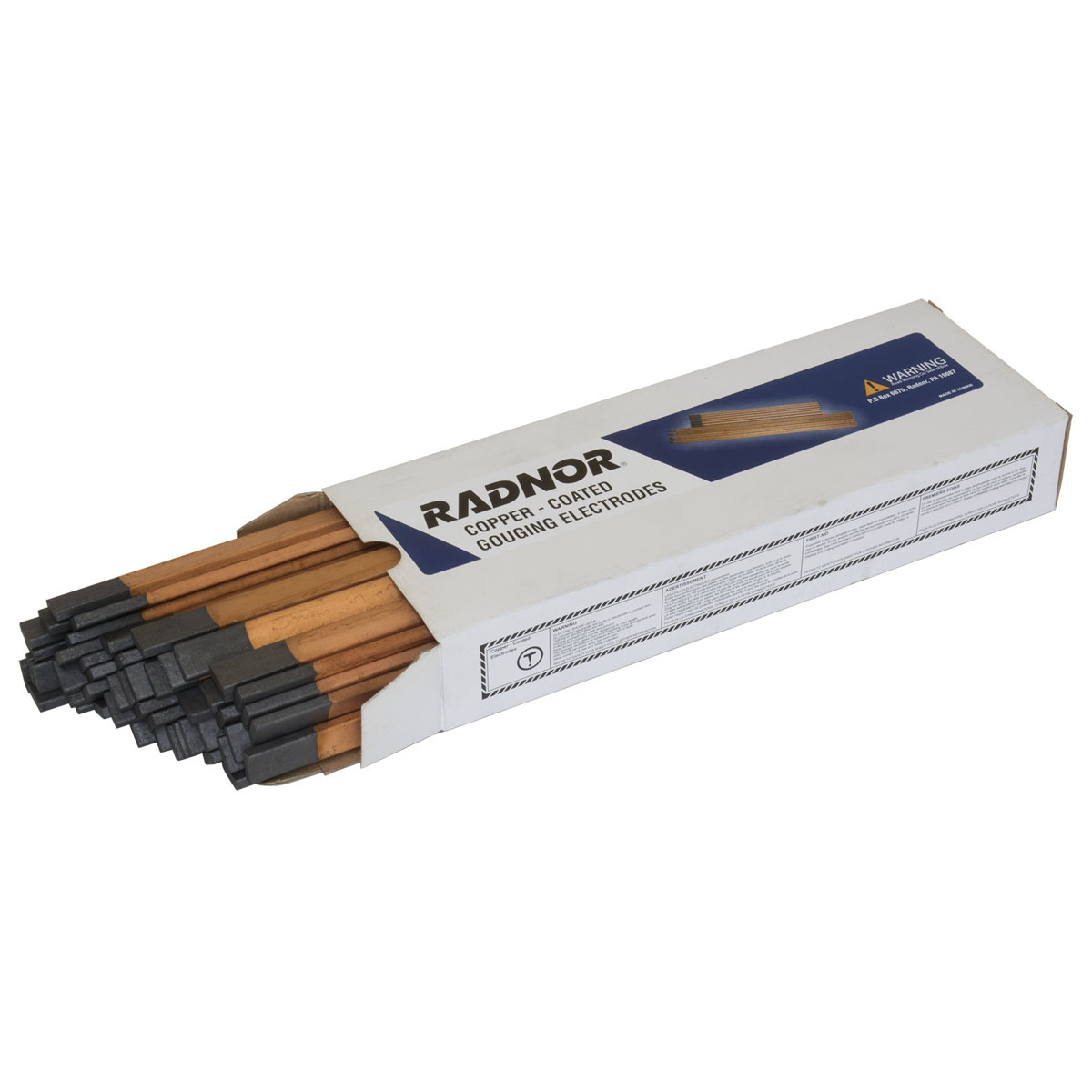

RADNOR™ 5/8" X 3/16" X 12" DC Flat Copperclad Arc Gouging Electrode (50 Each Per Box)

RADNOR™

SDS

Airgas Part #:RAD64002230

Manufacturer Part #:35033003

$135.13 /Box

RADNOR™ Flat Carbon Gouging Electrodes now feature a 100% Synthetic Graphite Core, which improves metal removal rates.

Faster gouging yields, excellent metal removal rates that challenge the leading products on the market
Purified carbon content for product consistency from lot-to-lot, run-to-run
Cooler operation to maintain the diameter of the electrode at the point of the arc
Superior arc starting and arc stability

Electrodes must be kept dry / Wet electrodes can flake or splinter, and are dangerous
If electrodes become wet, bake at 300°F for 10 hours before using
If exposed to excess gouging fumes, seek fresh air immediately
In case of arc rays or electric shock, employ normal first aid techniques and call a physician immediately
Refer to SDS

Electrode Type

» DC Flat Copperclad

Torch Amperage

» 300 - 500 A

Diameter

» 5/8" X 3/16"

Electrode Length

» 12"

Trade Name

» RADNOR™

Package Qty

» 50 Each Per Box
