Miller® Maxstar® 161 S 120 - 240 Volt Stick Welder

Airgas Part #:MIL907709

Manufacturer Part #:907709


$1,429.00 /Each
Each

Item Details

  • Miller® Maxstar® 161 S 120 - 240V, Stick Package. Best-of-class, provides maximum portability and performance in the most compact Stick package in the industry. Packs dependability and performance all in one machine.

Features

  • Superior Stick Arc Performance even on the difficult-to-run electrodes like E6010 Use on 120 and 240 Volt Input Power
  • Separate 120 and 240 volt power cords disconnect from the rear panel of the machine without the use of any tools to allow your common 120 and 240 volt power receptacles
  • Compact Design Allows for Great Portability
  • Weighing in at 13 lbs and featuring a convenient handle/shoulder strap, this little inverter-based Stick machine can be taken from location to location
  • No More "Sticky" Electrodes - With Miller's Adaptive Hot Start™ technology, you no longer have to worry about those difficult-to-strike electrodes
  • Conserve Your Electrodes With the Stick-Stuck feature the machine detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode
  • Input Power 120/240 Volts
  • Single Phase 50/60 Hz
  • Rated Output 160 Amps at 26.4 VDC - 20% Duty Cycle
  • 110 Amps at 24.4 VDC - 100% Duty Cycle
  • Output Range 20 - 160 Amps
  • Dimensions (H X W X D): 10.3" X 5.6" X 13.5"
  • Net Weight 13 lbs

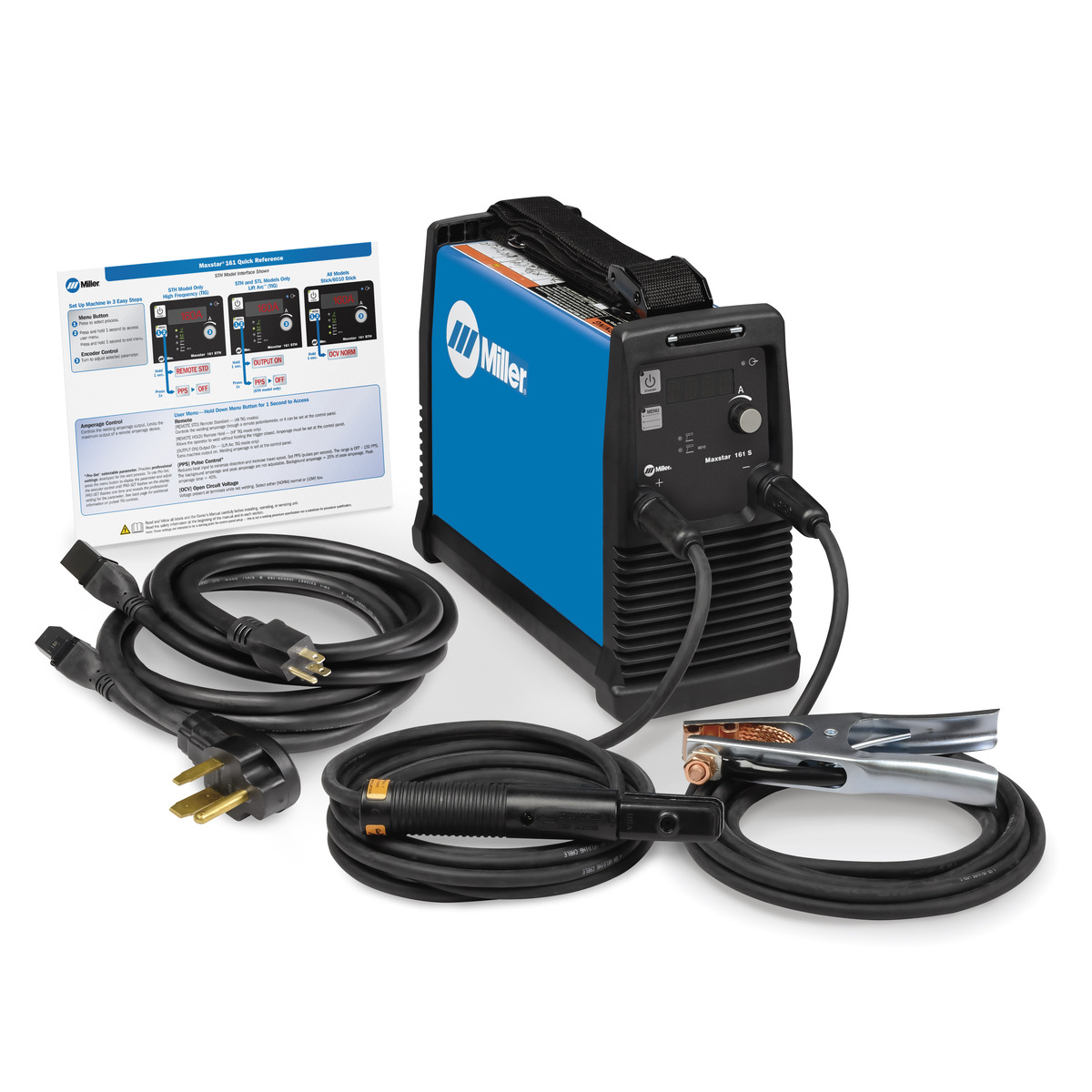

Includes

  • Maxstar® 161 S 6.5 ft
  • (2 m.) primary cords for 120 V and 240 V 13 ft
  • (4 m.) stick electrode holder with 25 mm
  • Dinse-style connector 10 ft
  • (3 m.) work clamp with 25 mm
  • Dinse-stlye connector Adjustable handle/shoulder strap

Applications

  • Maintenance and Repair
  • Mechanical Contractors
  • Shipbuilding
  • Vocational training
  • Metal art
  • Garage/job shops
  • Home repair
  • Hobbyist

Product Attributes

Trade Name

» Maxstar®
» Maxstar® 161 S

Input AC Voltage

» 240 V
» 120 V

Process

» Stick (SMAW)

Weight

» 13 lbs

Phase

» Single Phase

Hz

» 50,60

Output DC Amps Max

» 160

Campaign

» 1Q2024BWBM161
