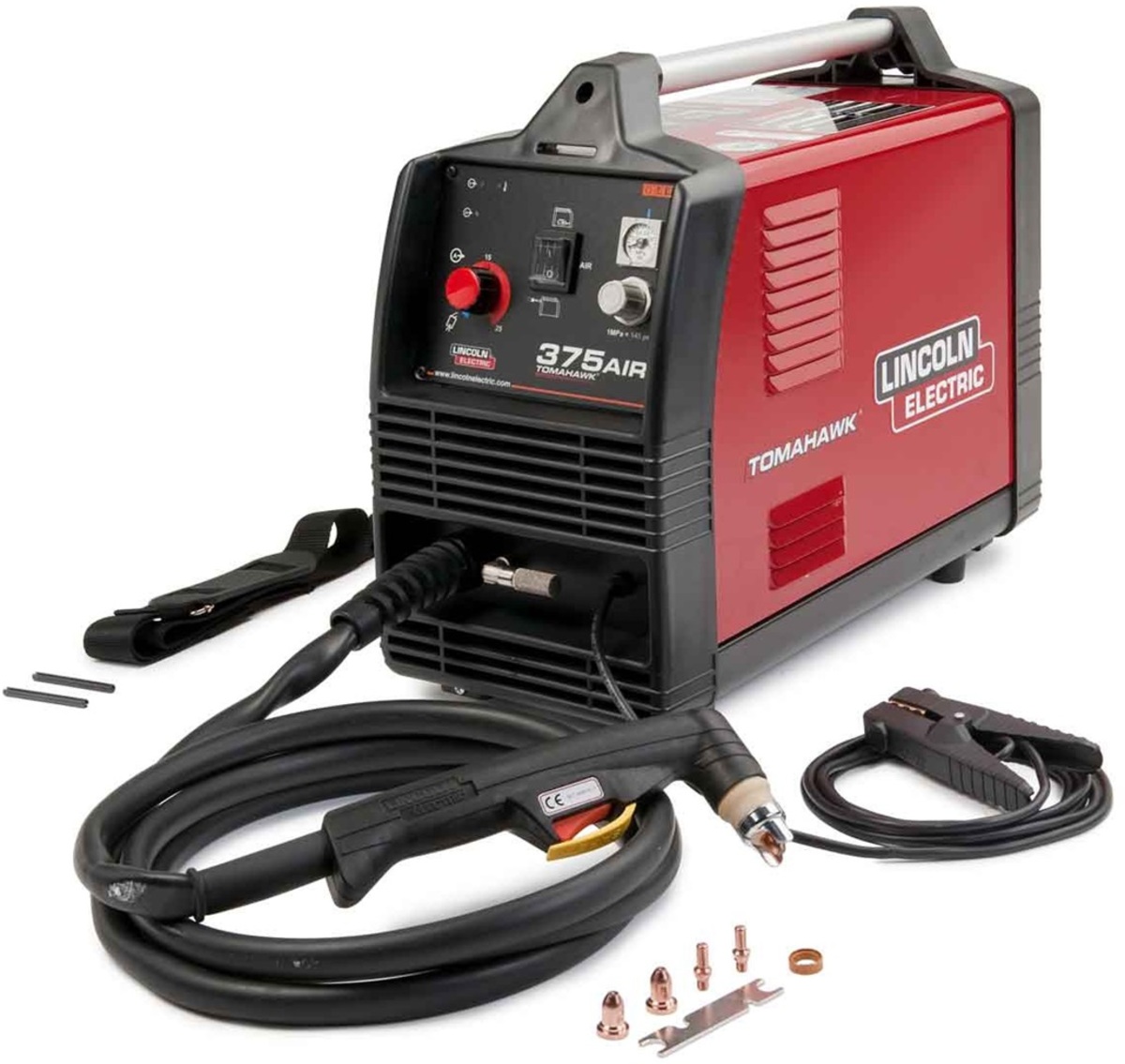

Lincoln Electric® 208 - 230 V Tomahawk® 375 AIR Plasma Cutter

Airgas Part #:LINK2806-1

Manufacturer Part #:K2806-1


$1,999.00 /Each
Each

Item Details

  • Plasma Cutting - Anywhere, Anytime. The Tomahawk® 375 Air plasma cutting system arrives ready to go for fast and precise cutting. With the 375 Air, forget the grinder dash - pick up the torch and cut in seconds.

Features

  • Ultimate Portability – Internal air compressor enables operation in environments where external compressed air is not available.
  • Continuous Output Control – Focus the arc for different material thickness
  • Touch Start System – Reliable plasma arc initiation without high frequency.
  • Rapid Arc Restrike – Fast cutting through gaps, even expanded metal.
  • Front Panel Purge Control – Makes it easy to set the airflow rate without initiating the plasma arc.
  • Cool Operation, Long Consumable Life - New electrode and nozzle design save you money in the long run.

Includes

  • (1) Tomahawk 375 AIR Plasma Cutter
  • (1) Internal Air Compressor (External Air Connection also Standard)
  • (1) LINK2846-1 LC25 Hand Torch and 10 ft (3 m) Cable
  • (3) LINKP2842-1 Electrode
  • (3) LINKP2842-2 Nozzle 25A
  • (2) LINKP2842-4 Swirl Ring
  • (1) LINKP2842-3 Retaining Cap
  • (1) LINKP2842-5 Drag Spacer
  • (1) Air Regulator and Pressure Gauge
  • (1) Internal Water Separator
  • (1) Work Clamp and Cable
  • (1) Shoulder Strap
  • (1) Input Power Cord

Applications

  • Construction
  • Automotive
  • General Fabrication

Product Attributes

Trade Name

» Tomahawk®
» Tomahawk® 375 AIR

Input AC Voltage

» 208 V
» 230 V

Recommended Cutting Capacity

» 5/16"

Gas

» Air
» Nitrogen

Maximum Cutting Thickness

» 3/8"

Maximum Severance

» 1/2"

Rated Output Voltage

» 85.2 V DC
» 87.2 V DC
» 90 V DC

Duty Cycle

» 100% @ 13A 85.2V DC
» 60% @ 18A 87.2V DC
» 35% @ 25A 90V DC

Physical Size

» 15.2" X 8.5" X 18.9"

Weight

» 40 lb

Output DC Amps Max

» 25
