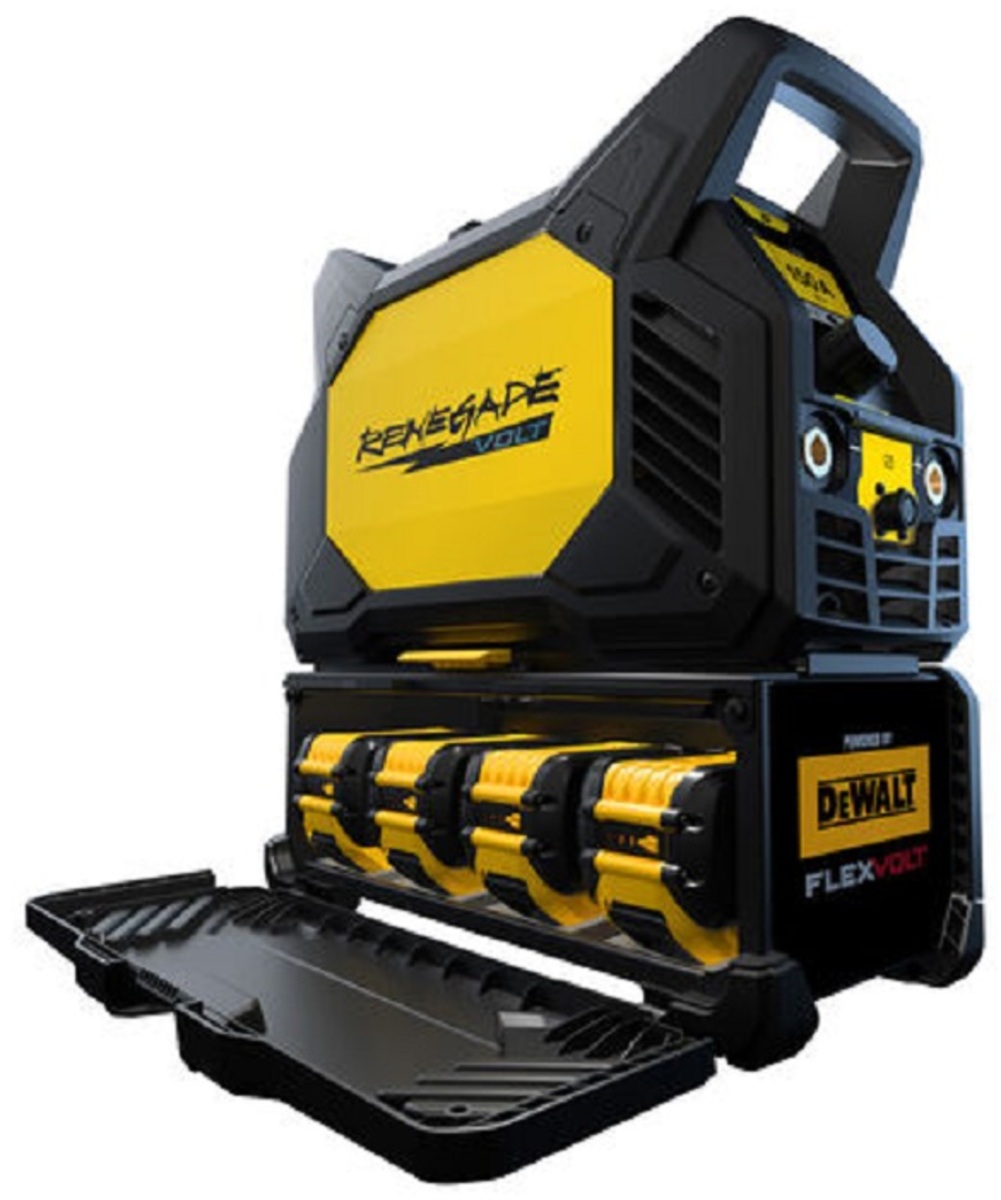

ESAB® Renegade VOLT™ ES 200i 3 Phase CC/CV Multi-Process Welder With 120 - 230 Input Voltage And Accessory Package

ESAB® Renegade VOLT™ ES 200i 3 Phase CC/CV Multi-Process Welder With 120 - 230 Input Voltage And Accessory Package

By
ESAB

Airgas Part #:ESA0447800880

Manufacturer Part #:0447800880


Save $600.00 (14%)
Valid thru 12/31/24
$3,599.00 /Each
Valid thru 12/31/24
$4,199.00 /Each
Save $600.00 (14%)
Each

Item Details

  • ESAB Renegade VOLT™ ES 200i is a portable, cordless battery powered, Stick (SMAW) and Live TIG (GTAW) welder with the versatility to operate in Battery, Mains, or AMP+ Hybrid Mode. This cordless welder runs on 6 Ah, 9 Ah, and 12 Ah DEWALT® FLEXVOLT® batteries. Renegade VOLT provides the power to burn up to 33 (E6013) electrodes on a single charge using four 12 Ah batteries, that are included in the package.* Renegade VOLT is a highly portable and powerful unit perfect for mobile welders operating in remote, offsite, or hard-to-reach locations without easy access to AC mains power. In AMP+ Hybrid Mode, Renegade VOLT supplements AC mains power with battery power to prevent nuisance trips on smaller breaker sizes (e.g., 10A, 16A) or to provide more output when welding on 120V input. Renegade VOLT features a rugged industrial design with durable, impact-resistant housing and multiple lift points for easy operation and transport in the field. The bright, intuitive color-screen user interface is designed for outdoor use, even in direct sunlight, and features a battery status display and remaining arc time calculator. This powerful welder offers the highest arc quality with special features that include hot start, arc force, memory storage, and cellulosic mode (6010) to optimize performance based on application or user preference. (based on standard operating conditions)

Features

  • 200 A output on AC mains (230V)
  • Up to 140 A output on battery power
  • Includes (4) DEWALT FLEXVOLT 20V/60V max 12 Ah batteries
  • AMP+ hybrid mode fore extra power
  • Lightweight and portable battery powered welder
  • Durable, impact-resistant housing
  • Sun-friendly, intuitive user interface
  • Memory storage for welding parameters

Specifications

  • SMAW/MMA (Stick)
  • GTAW (TIG)
  • GTAW-DC (TIG DC)

Includes

  • Power Source
  • (1) 4-port faster charger
  • (4) DEWALT® FLEXVOLT® 20V/60V MAX 12AH Batteries
  • TWECO Ground Clamp
  • TWECO Electrode Holder

Applications

  • Mining
  • Repair and Maintenance
  • Railcars
  • Agricultural Equipment
  • Ship and Offshore Yards
  • Marine and Offshore
  • Civil Construction
  • Transportation
  • Food and Beverage
  • Power Generation

Product Attributes

Trade Name

» Renegade VOLT™ ES 200i

Input AC Voltage

» 120 V
» 230 V

Output Mode

» CC/CV

Process

» TIG (GTAW)
» Stick (SMAW)

Output Voltage

» 230 V

Phase

» 3 Phase

Hz

» 50/60 Hz

Amperage Range

» 150 A
» 200 A

Output DC Amps Max

» 200

» Show more details and specs
