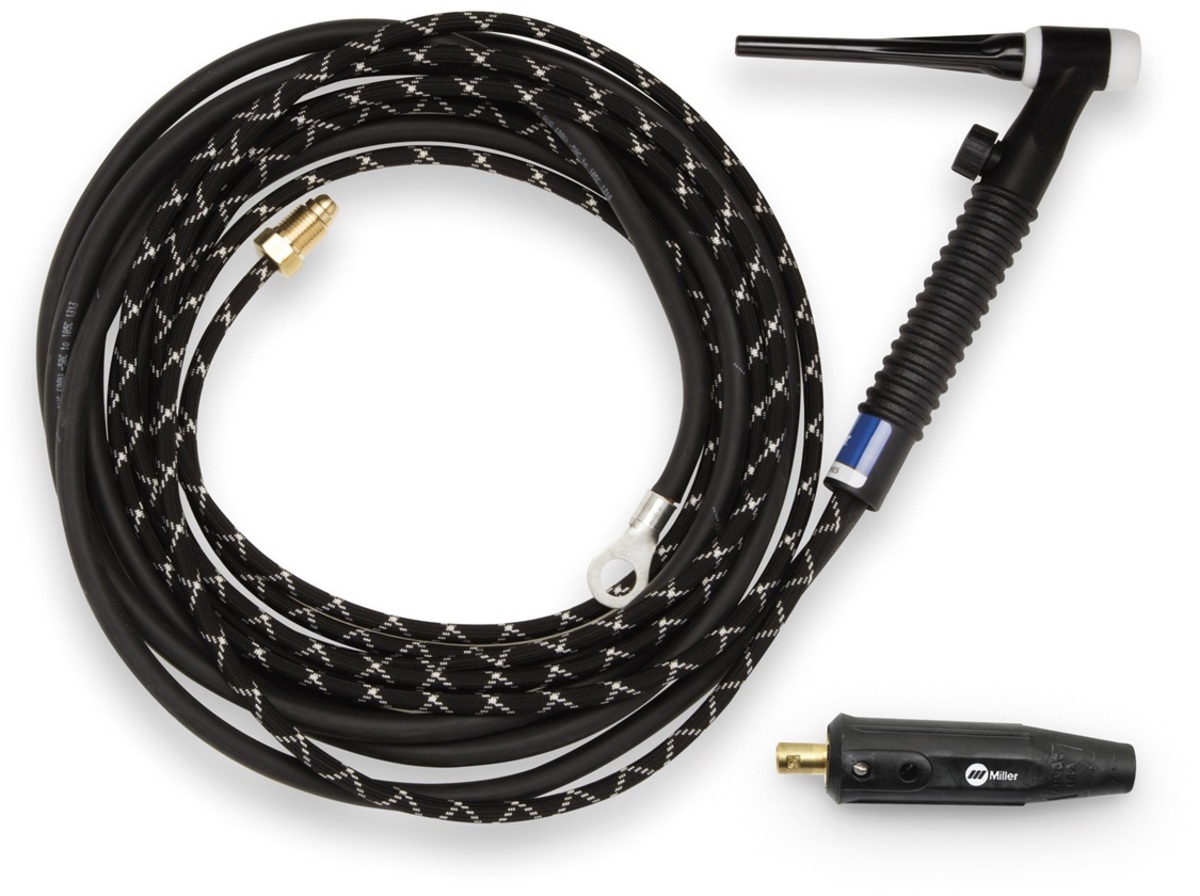

Miller® Weldcraft™ 150 Amp Air Cooled TIG Torch And 25' Cable
Airgas Part #:MIL301882
Manufacturer Part #:301882
Log in to get your price
$686.00
Each
$686.00
/Each
Item Details
- The ITW Miller Weldcraft A-150V (MPN 301882) is an industrial-grade, air-cooled manual Gas Tungsten Arc Welding (GTAW) torch package. This 17-series configuration is specifically engineered for use with the Miller Venture 150 S battery-powered welding platform. The system features a rigid torch head with an integrated manual gas control valve, a 25-foot two-piece high-flexibility rubber power cable, and a factory-terminated 50 mm Dinse male connector. It is designed for professional applications requiring portability and thermal efficiency in off-grid or field environments.
Features
- Diamond Grip™ Head Design: Molded geometric contact surfaces at anatomical finger and thumb zones for precision tracking
- Ribbed Handle Matrix: Longitudinal ribs increase surface area to accelerate convective heat dissipation
- Two-Piece Cable Architecture: Isolates electrical current line from gas channel to allow independent maintenance or repair
- Manual Gas Valve: Integrated on torch neck to bypass machine-internal electronic gas solenoids for direct regulator hookup
- High-Flex Rubber Jacketing: Maintains elastomeric properties and mechanical flexibility in low-temperature field environments
- Dielectric Strength: Silicone rubber head formulation prevents high-frequency (HF) voltage leakage during arc initiation
- Mechanical Lock: 50 mm Dinse connector provides secure mechanical lock to prevent accidental detachment
- Oxygen-Free Copper Braiding: Delivers optimal electrical conductivity and mitigates resistive heating along the 25-foot line
- Zero Permeability Gas Line: Braided rubber construction prevents atmospheric contamination of shielding gas
Specifications
- Manufacturer: ITW Welding / Miller Electric
- Brand: Weldcraft™
- Part Number (MPN): 301882
- Legacy Cross-Reference: WP-17V-25-2 (50 mm Dinse variant)
- Cooling Method: Air-Cooled
- Amperage Capacity (DC): 150 Amps
- Amperage Capacity (AC): 115 Amps
- Duty Cycle: 60% @ 150 Amps DC / 115 Amps AC
- Electrode Diameter Range: 0.020 in. – 1/8 in. (0.5 mm – 3.2 mm)
- Torch Head Geometry: Rigid / Fixed
- Torch Head Angle: 70-degree offset
- Cable Length: 25 feet (7.6 meters)
- Cable Architecture: 2-Piece (Separated power conductor and gas feed)
- Machine Connection: 50 mm Dinse male connector
- Gas Control: Manual integrated rotary fingertip valve
- Torch Body Insulation: High-density silicone rubber
- Internal Conductor: High-strand-count oxygen-free copper braiding
- Gas Line: Braided rubber hose
- Consumable Compatibility: Industry 17-Series / 10N series
- Collet Series: 10N series (10N22, 10N23, 10N24, 10N25)
- Collet Body Series: 10N series (10N26, 10N27, 10N28)
- Gas Lens Compatibility: 45V series medium gas lenses
- Alumina Nozzle Series: 10N series (10N50 to 10N44; Sizes #4, #5, #6, #7, #8, #10)
- Compliance Standards: CSA E60974-1, NEMA EW 1
- Safety Warning: California Proposition 65 (Lead/Brass components)
Applications
- Remote Pipeline Repair: High-purity TIG repairs on thin-to-medium wall structural elements in off-grid locations
- Aerospace and Aviation Maintenance: Localized manual cladding and tube-cluster welding on specialized alloys
- Motorsports Fabrication: Critical tacking and welding on chromoly, stainless steel, and nickel alloys
- Industrial Plant Maintenance: Clean-room piping installations and food-processing facility stainless steel line work
- Mechanical Contracting: Commercial HVAC duct arrays and structural field service
- Battery-Powered Welding: Optimized for use with the Miller Venture 150 S to minimize voltage drop and conserve battery capacity
