Hypertherm® Deluxe Cutting Guide Kit
By
Airgas Part #:HYP027668
Manufacturer Part #:027668
Log in to get your price
$294.00
Each
$294.00
/Each
Item Details

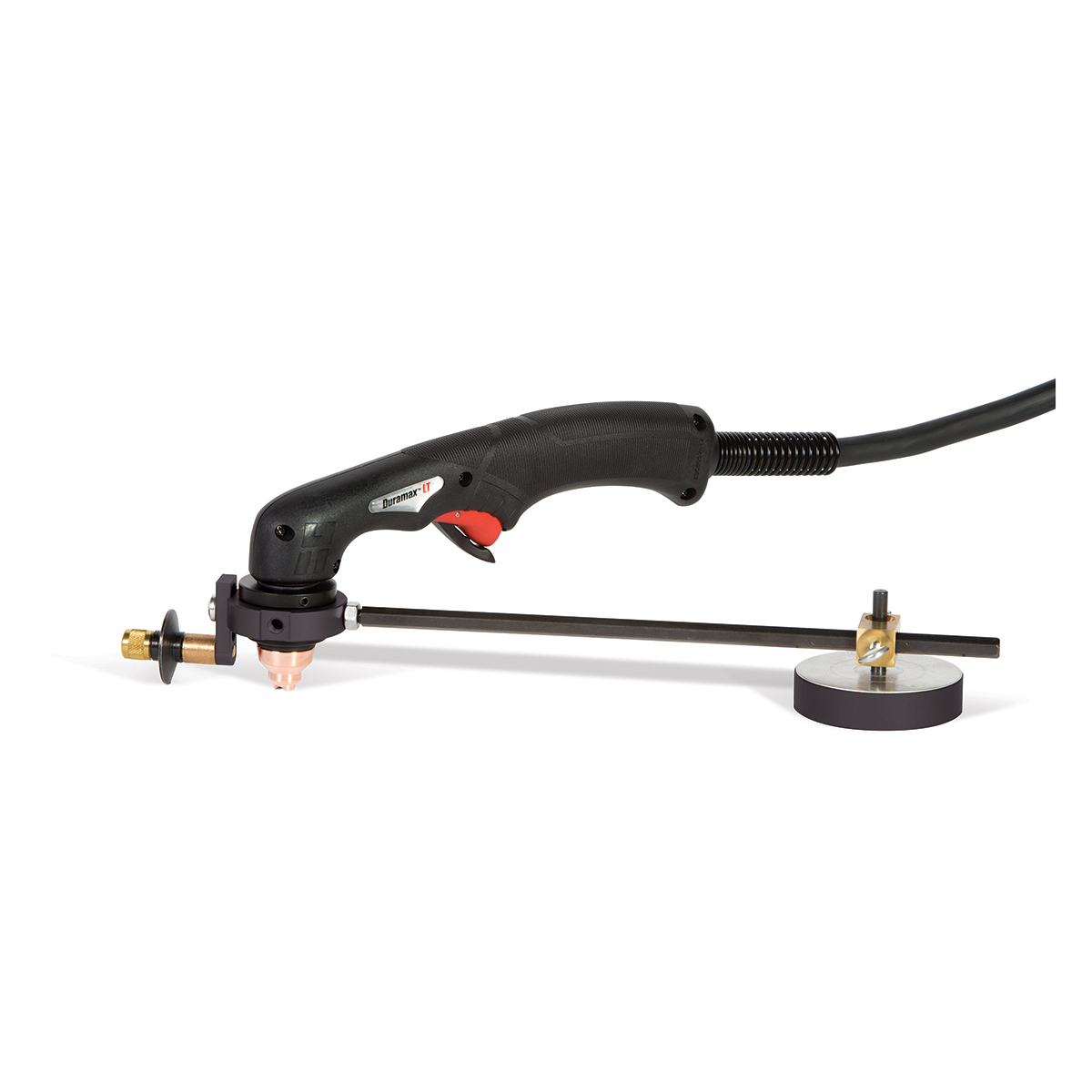

- The Hypertherm 027668 Deluxe Plasma Circle Cutting Guide Kit is a structural steel tool designed for precision radius, straight, and bevel cutting. It provides a consistent stand-off for optimized torch performance and includes components for stable operation on both ferrous and non-ferrous materials.
Features
- Rotating torch cap holder
- Two metal wheels with adjustable axles for smooth movement
- 11" (28 cm) guide arm
- Center pin and holder
- Magnetic base for stable attachment to ferrous surfaces
- Four suction cups for attachment to non-ferrous/non-metallic materials
- Plastic carrying case for storage and transport
- Consistent stand-off height maintenance
Specifications
- Manufacturer: Hypertherm Inc
- MPN: 027668
- EAN/GTIN: 00662310135973
- Arm Length: 11" (28 cm)
- Cutting Diameter Range: 3" to 20" (51 cm)
- Material: Structural steel
- Compatible Torches: PAC105, PAC125, T60, T80
- Compatible Powermax Systems: Powermax 30 Air, Powermax 30XP, Powermax 33XP, Powermax 45XP, Powermax 65, Powermax 85, Powermax 105
- Incompatible Systems: Powermax 125 (requires part number 017053)
Includes
- (2) metal wheels and adjustable axles
- Rotating torch cap holder
- 11" arm
- Center pin and holder
- Magnetic base
- (4) suction cups for non-metallic material
- Carrying case
Applications
- Radius cutting
- Straight line cutting
- Bevel cutting
- Circle cutting on ferrous metals using magnetic base
- Circle cutting on non-ferrous/non-metallic materials using suction cups
Product Attributes
Accessory Type
» Deluxe Cutting Guide KitMachine Model
» Powermax45® XP» Powermax30® XP
» Powermax30® AIR
» Powermax65®
» Powermax85®
» Powermax105®
Material
» Stainless Steel
