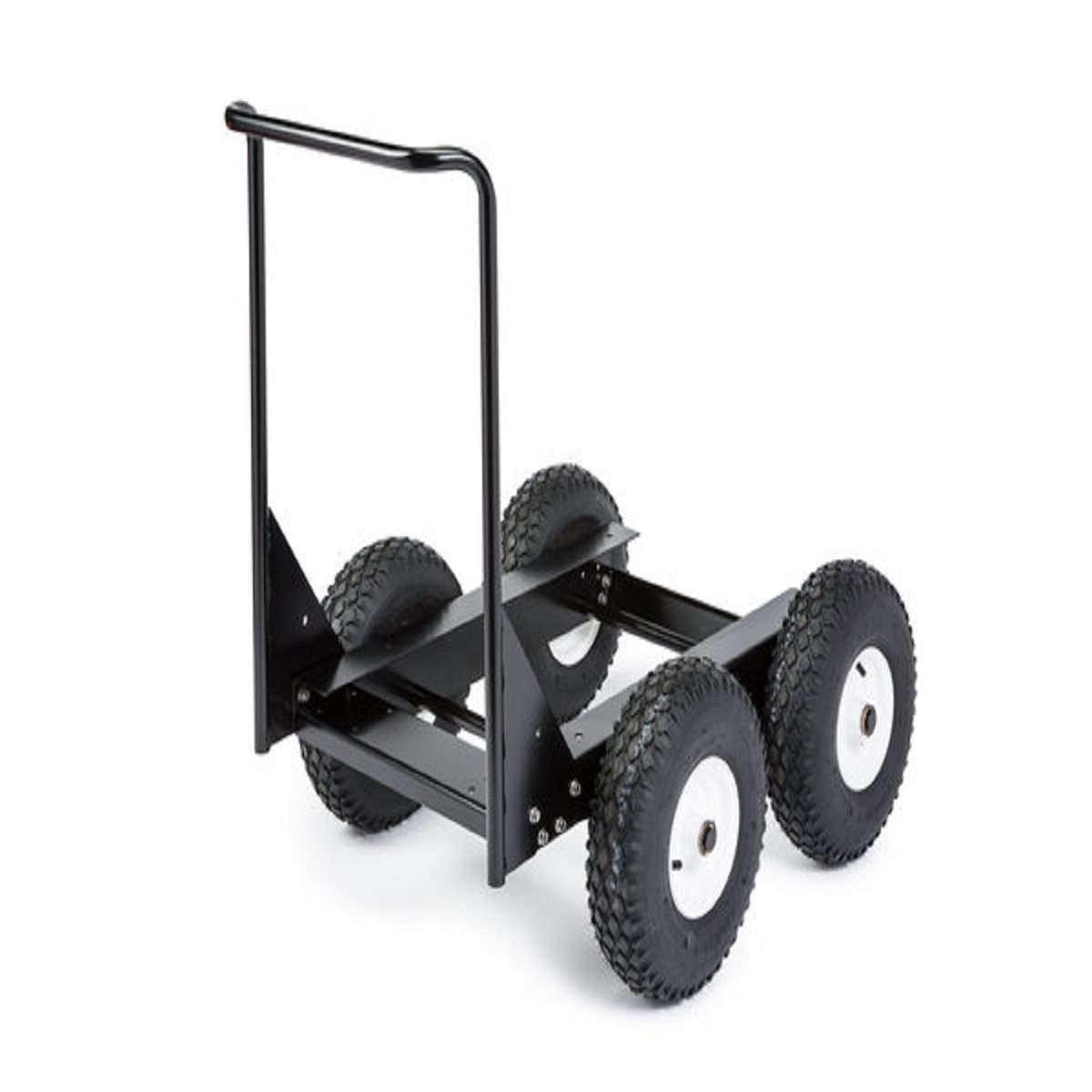

Lincoln Electric® Undercarriage For Use With Ranger 260MPX/Ranger 330MPX
Airgas Part #:LINK3590-2
Manufacturer Part #:K3590-2
Log in to get your price
$1,845.53
Each
$1,845.53
/Each
Item Details
- The Lincoln Electric K3590-2 is a heavy-duty industrial-grade mobile running gear designed to provide localized mobility for specific engine-driven welder/generators across harsh construction environments. It features a dual-axle layout with four large-diameter flat-free tires and a structural steel frame to support the weight and footprint of Ranger MPX series machines.
Features
- Puncture-resistant solid tires to eliminate field downtime from metal shavings, slag, or rebar
- 14-inch diameter tires for high ground clearance over gravel, mud, and loose dirt
- Fixed balanced dual-axle layout to maintain a low center of gravity for tip-over resistance
- Ergonomic high-leverage integrated pull handle for manual single-operator maneuvering
- Mechanical vibration dampening to absorb engine harmonics and protect internal electronics
- Compact 33-inch width allows passage through standard commercial doorways
- Industrial-grade powder coating for protection against UV exposure, chemicals, and moisture
Specifications
- Manufacturer Part Number: K3590-2
- Product Type: Industrial All-Terrain Undercarriage
- Number of Wheels: 4
- Wheel Configuration: Dual-axle
- Wheel Diameter: 14 inches (355.6 mm)
- Tire Technology: Flat-Free puncture-resistant polyurethane / solid-matrix micro-cellular foam
- Net Weight: 150 lbs (68.04 kg)
- Shipping Weight: 160 lbs (72.57 kg)
- Assembled Height: 40 inches (1,016 mm)
- Assembled Width: 33 inches (838 mm)
- Assembled Length: 42 inches (1,067 mm)
- Chassis Frame Material: Heavy-gauge structural welded tubular steel
- Finish: Corrosion-resistant black powder coat
- Country of Origin: United States of America
- Manufacturer Warranty: 1-Year Limited Industrial
- Fully Compatible Models: Ranger 260MPX, Ranger 330MPX
- Explicit Exclusions: Ranger 225, Ranger 250, Ranger 325, LP-powered engine drives, Diesel-powered engine drives
- Regulatory Standards: AWS / NEMA alignment
- Environmental Compliance: California Proposition 65 notified
Applications
- Structural steel construction
- Field pipeline erection and repair
- Industrial maintenance and turnarounds
- General heavy fabrication
- Refinery and factory complex maintenance
- Remote job site welding operations
Product Attributes
Product Type
» UndercarriageTorch/Machine Model
» Ranger 260MPX | Ranger 330MPXSize Description
» 40" H X 33" W X 42" L
