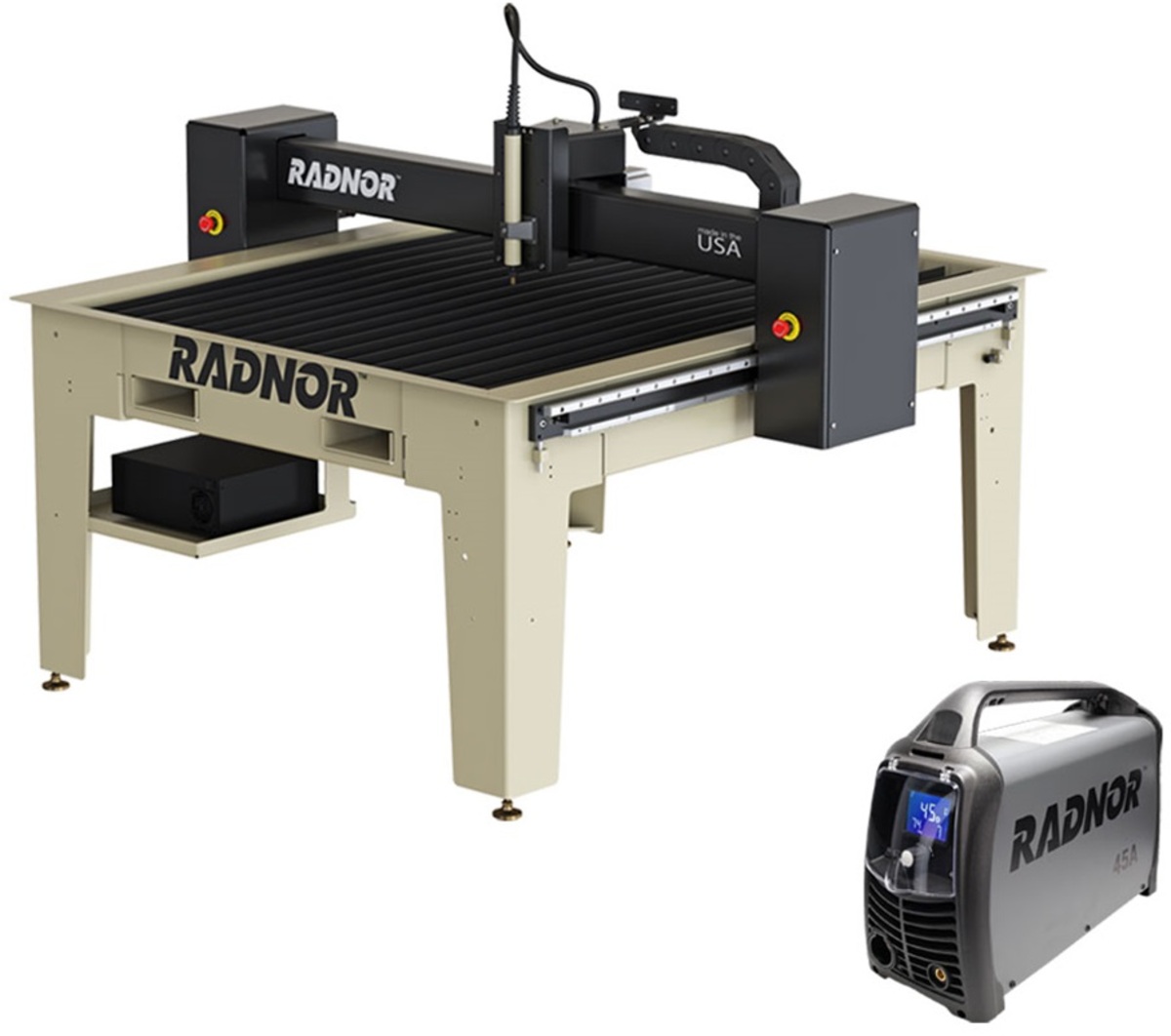

RADNOR™ 4' X 4' Cutting Table With RADNOR™ 45A Plasma Cutter And FlashCut® CNC Software
By
Airgas Part #:RAD64008935
Manufacturer Part #:PRODUCTION BOM
Log in to get your price
$28,046.48
Each
$28,046.48
/Each
Item Details
- The RADNOR 64008935 is an industrial 4' x 4' CNC plasma cutting system. It integrates a 7-gauge mild steel cutting table with a RADNOR 45A automated plasma cutter and FlashCut® Version 10 Pro software. The system is designed for high-accuracy metal fabrication with a 1,000 IPM rapid traverse speed and ±0.0015" repeatability.
Features
- Compact 4' x 4' footprint
- Integrated forklift pockets for handling
- Helical gear racks with robust motors and gear boxes
- Water pan management system
- CNC-port interface for automated integration
- LCD display with clear control panel
- Automatic settings for cutting gas media, electrical input voltage, and pilot current
- Auto compensation for air pressure drops
- Four operating modes: cutting, expanded metal cutting, gouging, and marking
- Adjustable amperage for 15 A household breakers
- Made in America
Specifications
- Table Dimensions: 78" x 72" x 56"
- Table Material: 7-gauge mild steel
- Rapid Traverse Speed: 1000 IPM
- Repeatability: ±0.0015"
- Water Capacity: 65 gallons
- Table Weight: 1300 lbs.
- Plasma Cutter Weight: 28 lbs.
- Input Voltage: 120 - 240 V (Dual-voltage)
- Output Amperage: 15 - 45 Amps
- Duty Cycle (230 V): 45 A @ 50%
- Duty Cycle (115 V): 25 A @ 40%
- Maximum Cutting Capacity (240 V): 1" steel (edge-start, 4 IPM)
- Maximum Cutting Capacity (120 V): 16-gauge steel
- Table Capacity: 2" mild steel
- Software: FlashCut® CNC Version 10.0 Pro
- Software OS Requirements: 64-bit Windows 10 or newer
- Software CPU Requirements: 2-core Intel i3 or equivalent (2.1 GHz or greater)
- Software Memory Requirements: 8GB RAM
- Software Storage Requirements: Solid-state drive (SSD)
- Connectivity: 1x USB (Main), 1x USB (Servo), 1x USB (Plasma communications), 1x USB (Control pendant)
- Torch: 75 Degree Handheld Torch with 20' lead (RAD64000064)
Includes
- RADNOR™ 45A Plasma Cutter
- RADNOR™ Cutting Table
Applications
- Industrial Metal Fabrication
- Artistic Metal Working
- Artwork, Signs, and Ornamentation
- Bevel Cutting
- Fine Feature Cutting
- Mechanical Contractors
- Pipe and Pipelines
- Steel Service Centers
- Structural Steel
Product Attributes
Size
» 4' X 4'Product Type
» Complete System
