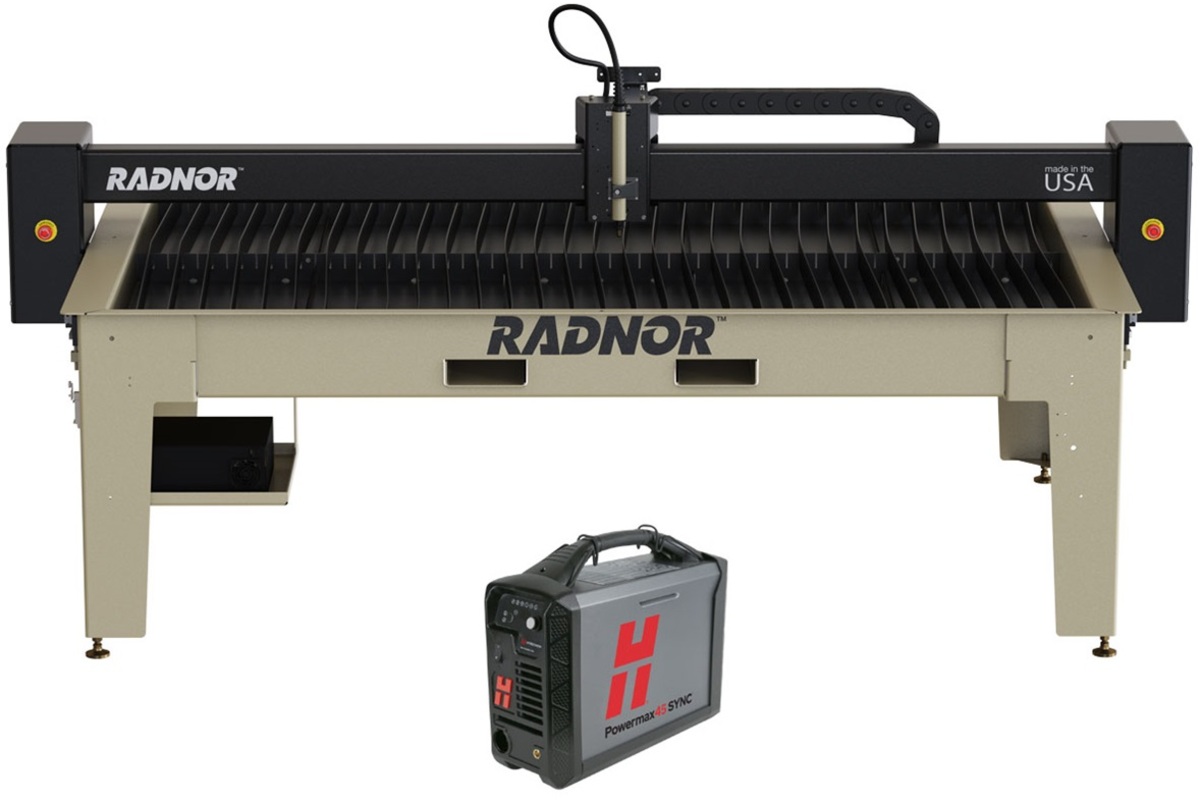

RADNOR™ 10' X 5' Cutting Table With Hypertherm® Powermax45 SYNC® Plasma Cutter And FlashCut® CNC Software
By
Airgas Part #:RAD64008925
Manufacturer Part #:PRODUCTION BOM
Log in to get your price
$35,892.00
Each
$35,892.00
/Each
Item Details
- The Radnor 64008925 is a 5' x 10' CNC plasma cutting system integrated with a Hypertherm Powermax45 SYNC plasma unit and FlashCut CNC Version 10.0 Pro software. The system is constructed from 7-gauge mild steel and is designed for industrial metal fabrication and artistic metalworking.
Features
- Industrial CNC table with 5' x 10' footprint
- Integrated forklift pockets for transport and handling
- Single-piece cartridge consumable platform for Powermax45 SYNC
- SmartSYNC torches with RFID capability for automatic amperage and process setting
- Helical gear racks for precision motion control
- USB-port connectivity for system setup and operation
- 7-gauge mild steel construction
- 100% recyclable power supply components
- Data analysis via cartridge reader for utilization tracking
Specifications
- Table Dimensions: 5' x 10'
- Table Material: 7-gauge mild steel
- Rapid Speed: 314 IPM
- Plasma Unit: Hypertherm Powermax45 SYNC
- Plasma Dimensions: 442 mm D x 173 mm W x 357 mm H (17.4" D x 6.8" W x 14.1" H)
- Recommended Cut Capacity: 16 mm (5/8")
- Recommended Cut Speed: 500 mm/min (20 ipm)
- Severance Cut Capacity (Hand): 29 mm (1-1/8")
- Pierce Capacity: 12 mm (1/2")
- Gas Supply Types: Air (clean, dry, oil-free), Nitrogen, F5
- Recommended Gas Inlet Flow Rate: 188 l/min (400 scfh / 6.7 scfm)
- Recommended Gas Inlet Pressure: 5.9 bar (90 psi)
- Input Power Cable Length: 3 m (10')
- Power Supply Type: Inverter – IGBT
- Engine Drive Requirement: 12.5 kVA (10 kW) for full 45 A output
- Electrical Efficiency: 90%
- Software: FlashCut CNC Version 10.0 Pro
- Software OS Requirement: 64-bit Windows 10 or newer
- Software CPU Requirement: 2-core Intel i3 or equivalent (2.1 GHz or greater)
- Software Memory Requirement: 8GB RAM
- Software Storage Requirement: Solid-state drive (SSD)
- Connectivity: 1x USB (Standard), 1x USB (Servo), 1x USB (Plasma communications), 1x USB (Control pendant)
- Drive Components: Precision motors, gear boxes, and helical gear racks
- Manufacturing Origin: Made in America
- Plasma Power Supply Warranty: 6-year
- Torch Warranty: 1-year
Includes
- RADNOR™ Cutting Table
- Hypertherm® Powermax45 SYNC® Plasma Cutter
Applications
- Industrial Metal Fabrication
- Artistic Metal Working
- Mechanized Table Cutting
- Fine Feature Cutting (narrow kerf width)
- Max Control Gouging (shallow profiles)
- Max Removal Gouging (aggressive metal removal)
- Precision Gouging (spot and tack weld removal <25 A)
- Metal Marking (scoring, part identification, hole/weld locations)
- Extended Reach Cutting and Gouging
- Flush Cutting
