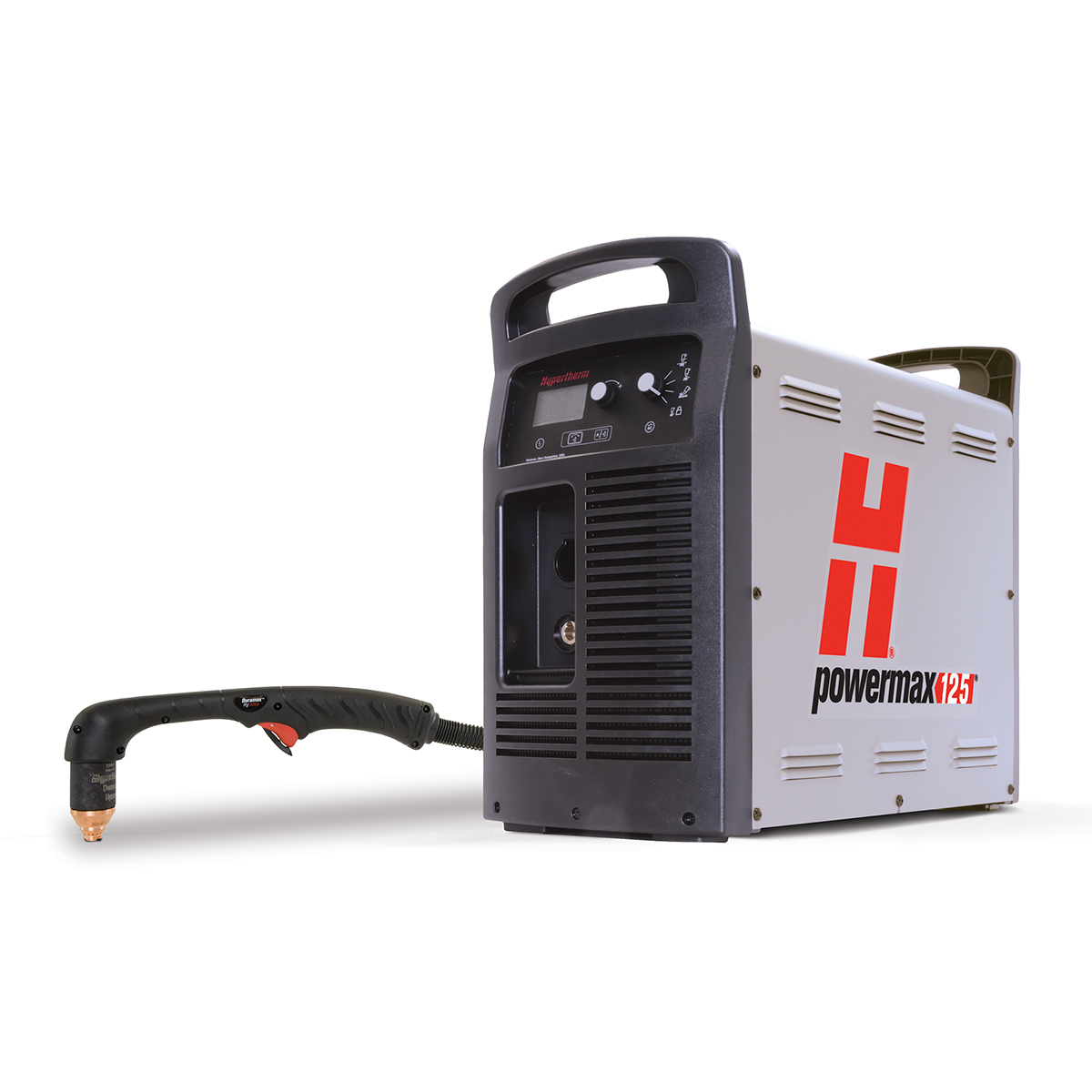

Hypertherm® 480 V Powermax125® Plasma Cutter With CPC Port, Voltage Divider, 85 Degree Handheld Torch And 25' Lead

Airgas Part #:HYP059536

Manufacturer Part #:059536


$9,300.00 /Each
Each

Item Details

  • Hypertherm® Powermax125® CSA Plasma Cutter with CPC port and voltage divider delivers 480 V for cutting applications. System features a 85 deg hand torch that measures 25'.

Features

  • Finish jobs faster with cut speeds 5 times greater than oxyfuel on 12mm mild steel
  • Spend less time on grinding and edge preparation due to superior cut and gouge quality
  • Maximize your cutting time with a 100% duty cycle Reduce costs with consumable life up to four times longer than other systems in this amperage range
  • Electrode end-of-life detection protects the torch and workpiece from damage by automatically stopping power when the electrode is overused
  • No need to change the air pressure Smart Sense™ technology ensures that it is always correctly set
  • Tackle different jobs with multiple, easy-to-use torch styles Duramax™ Hyamp™ torches are designed for high-impact and heat resistance
  • SpringStart™ technology ensures consistent starting and a more reliable torch Low maintenance maximizes uptime

Specifications

  • Recommended gas inlet flow rate/pressure: Cutting: @ 260 l/min (550 scfh) @ 5.9 bar (85 psi), Gouging: 212 l/min (450 scfh) @ 4.1 bar (60 psi)

Includes

  • Power Supply With CPC Port
  • Voltage Divider
  • 85° Hand Torch
  • 25' Lead

Applications

  • Bevel cutting
  • Fine feature cutting
  • Gouging
  • Marking or scoring
  • Agriculture
  • Artwork, signs and ornamentation
  • Automotive
  • Construction
  • Energy
  • HVAC
  • Mechanical contractors
  • Metal fabricators
  • Mining
  • Pipe and pipelines
  • Shipbuilding
  • Steel service centers
  • Structural steel
  • Transportation

Product Attributes

Trade Name

» Powermax125®

Input AC Voltage

» 480 V

Recommended Cutting Capacity

» 1 1/2"

Maximum Severance

» 2 1/4"

Gas

» Air
» F5
» Nitrogen

Phase

» 3 Phase

Hz

» 50/60 Hz

Machine/Torch Amperage

» 30 A
» 125 A

Duty Cycle

» 100% @ 125 A
» 3-PH
» 480/600 V

Gas Flow SCFH

» 550 scfh

Gas Pressure

» 85 psi

Weight

» 108 lb

Physical Size

» 23.3 in X 10.8 in X 20 in

Output Voltage

» 175 V
