Airgas - C838941075502 - Chicago Pneumatic 5/8" -11 UNC Spindle Drive Angle Air Grinder

Hover cursor over image to view larger picture

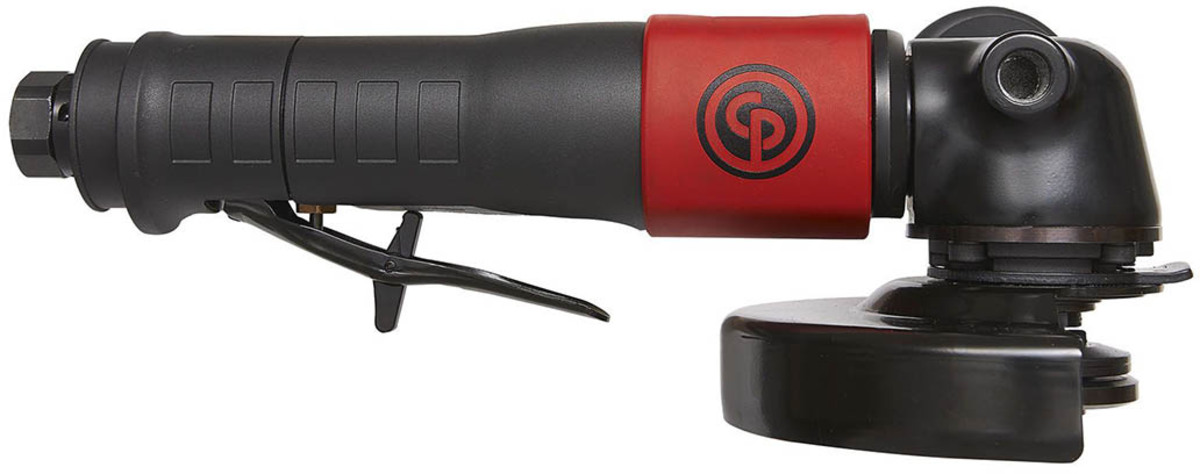

Chicago Pneumatic 5/8" -11 UNC Spindle Drive Angle Air Grinder

Chicago Pneumatic

Datasheet

Airgas Part #:C838941075502

Manufacturer Part #:8941075502

Save $221.12 (39%)

$339.00 /Each

~~$560.12 /Each~~

Save $221.12 (39%)

Designed for variety of applications such as sanding with flap discs, grinding, and cutting, this angle grinder series offers high efficiency with its power of 1.1 HP (840 W) and high durability with its high quality bevel gears and governed motor. The range consists of 7 models: 2x 4" wheel (3/8" - 24 spindle thread), 2x 4.5" wheel (3/8" - 24 and 5/8" - 11 spindle thread) and 3x 5" wheel (M14 and 3/8" - 24 and 5/8" - 11 spindle thread).

Speed and Power: With a robust 1.13 HP (840 W) motor, this grinder delivers high-speed performance at 12,000 RPM, making it ideal for sanding, grinding, and cutting tasks.
Ergonomics: The well-balanced and compact construction, along with a composite grip that insulates against cold, ensures comfortable operation. Plus, the 360° swivel air inlet allows flexibility for both right- and left-handed users.
Safety: The rear exhaust, Streamline CP Safety Lever, steel guard, and safety screw enhance user safety during operation.
Applications: Use this angle grinder for various tasks, including sanding with flap discs, grinding, and cutting. Its high-quality bevel gears and governed motor ensure durability and efficiency.
General Specifications: The CP7550-B features a 5-inch (125 mm) wheel capacity, 1000-hour service interval, and a 5/8-11 UNC spindle thread. Its length is 10.6 inches (270 mm), and it has an air inlet size of 1/4 inch.

Product Type

» Air Grinder

Speed

» 12000 RPM

Tool Air Consumption

» 40 CFM Load

Size Description

» 9.6" W X 3.6" H X 10.63" L

Drive/Chuck Size

» 5/8" -11 UNC

Drive/Chuck Type

» Spindle

Minimum Hose Size

» 3/8"

Tool Air Inlet

» 1/4"

Required PSI

» 90
