Airgas - HCL4300224 - Harris® Model 8530 40 PSI 1/2" Propane (LPG) And Hydrogen And Natural Gas Flashback Arrestor Set

Hover cursor over image to view larger picture

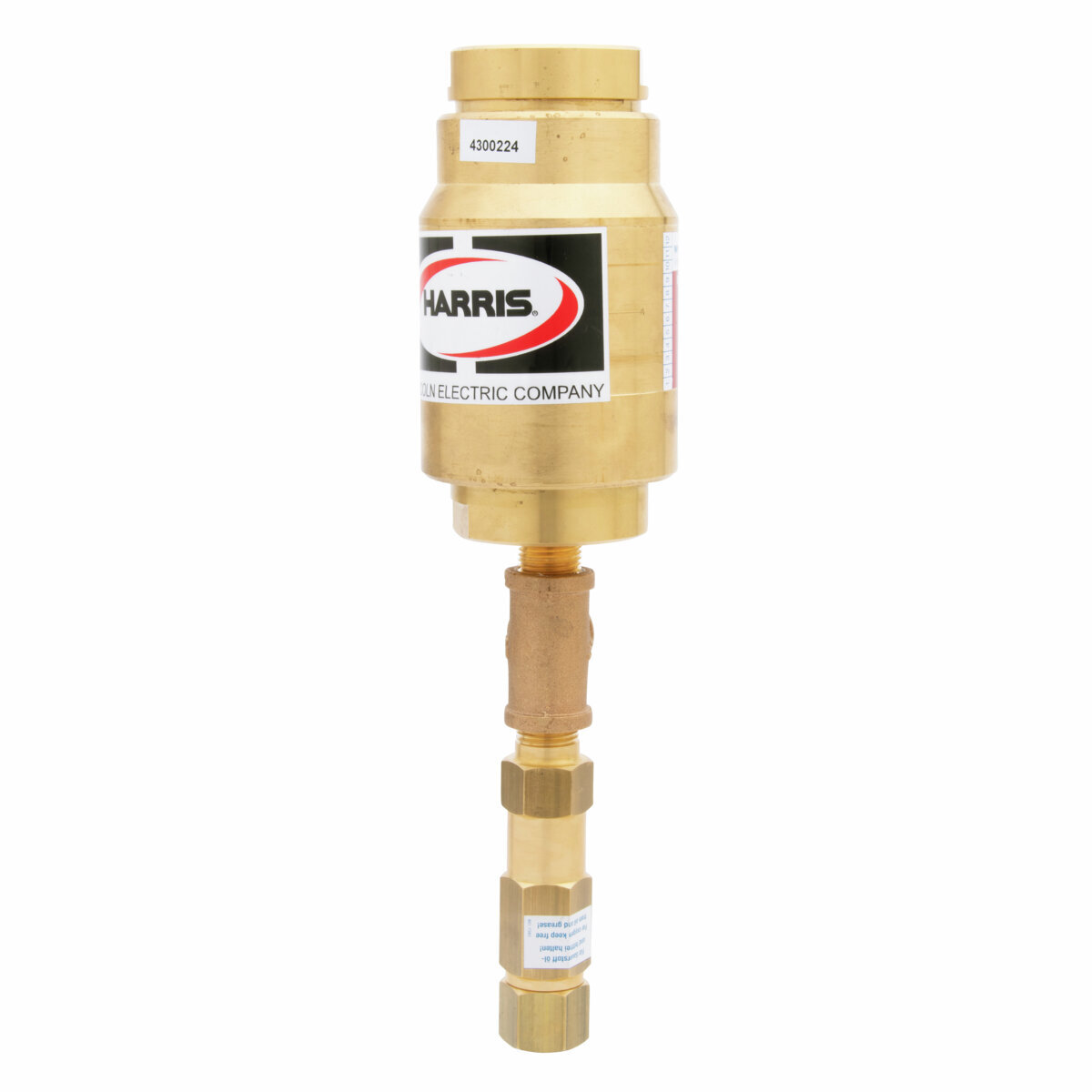

Harris® Model 8530 40 PSI 1/2" Propane (LPG) And Hydrogen And Natural Gas Flashback Arrestor Set

Airgas Part #:HCL4300224

Manufacturer Part #:4300224

$1,973.32 /Each

Harris® LPG/Natural Gas/Hydrogen Dry Arrestor with 1/2" NPT inlet/outlet connection has flow capacity of 1000 SCFH. NFPA pipeline protection device is used in industrial gas distribution systems.

Harris® pipeline protection devices incorporate dry type flashback arrestors, ASME relief valves and check valves in their design
They are designed to meet requirements of NFPA 51 in fuel gas piping systems
Unlike hydraulic flash arrestors, dry arrestors are maintenance free, do not require fluid and provide continuous safe operation in fuel gas distribution systems
High surface area stainless steel flash arrestor material extinguishes flashback
Temperature sensitive shut-off valve extinguishes sustained flashbacks
Spring loaded check valve prevents reverse flow from forming explosive mixtures in the gas supply
Can be mounted in any position

Product Type

» Flashback Arrestor Set

Gas

» Propane (LPG)
» Hydrogen
» Natural Gas

Size Description

» 1/2" NPT

Model

» 8530 40 PSI 1/2"

Pressure Rating

» 40 psig

Flow Capacity (scfh)

» 1000 scfh

Material

» Brass
