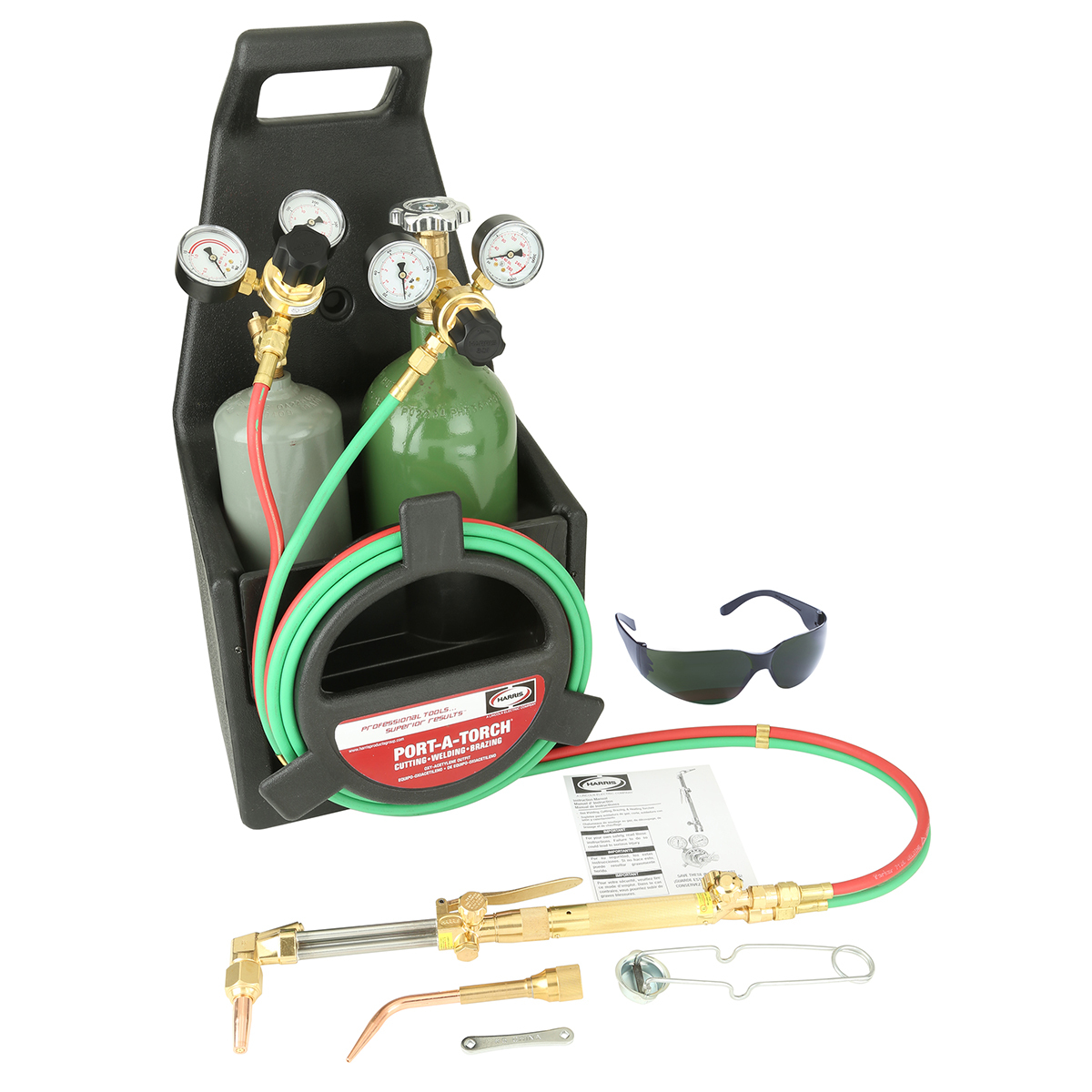

Model HMD 601 Port-A-Torch® kit with cylinders contains all the quality equipment needed for cutting, brazing, and welding using oxygen and acetylene gases all in a convenient portable carrying case. The kit can cut up 4 in. (101.6mm) and is supplied with a tip to cut up to 1 in. (25.4mm) plate. The kit can braze up to 3 in. (76.2mm) diameter copper tube and is supplied with a size tip for brazing copper up to ¾ in. (19.1mm) tube. The kit is capable of welding up to 1/2 in. (12.7mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate.
Features
Medium Duty Port-A-Torch® 2-tube design kit with cylinders designed to be used with oxygen and acetylene gases.
Regulator oxygen and acetylene model 601 with 50mm dual scale plastic gauges, notched adjusting knob and our distinguished internal encapsulated seat filter.
Oxygen regulator that delivers up 80 psi and acetylene that regulator delivers up 15 psi.
Torch handle Model 85 has twin-tube, silver-brazed connections and is equipped with external replaceable FlashGuard® check valves.
Cutting attachment model 72-3 features brazed triangular stainless-steel tubes, fold-forward cutting lever, ease-on cutting valve and solid brass head.
Consumables included: cutting tip model 6290-1AC, mixer model D85 and welding/brazing tip model 23A90-3.
Accessories included: Shade 5 safety glasses (ANSI Z87.1 CE Weld), Handheld ignitor, 3/16 in. x 12 ft. BxB twin R-grade hose, #5 chrome acetylene cylinder wrench, 20 cu.ft. green oxygen cylinder (CGA-540), 10 cu.ft. grey acetylene cylinder (CGA-200 MC) and black plastic PAT hose reel case (Cylinders shipped empty).
Includes
Model 601-15-200 Fuel Gas Regulator - 3000295
Model 601-80-540 Oxygen Regulator - 3000296
Model 85 Torch Handle - 1401340
Model 72-3 Cutting Attachment - 1300380
Model D-85 Mixer Assembly - 9100614
Model 6290-1AC Cutting Tip - 1502172
Model 23A90-3 Welding Tip - 1600870
3/16 in. x 12 ft. Twin BandB R-Grade Oxy-Acetylene Hose - 4300556
Safety Glasses Shade 5 - 4303629
Handheld Ignitor - 9004486
Acetylene B-Cylinder Wrench - KH231
Port-A-Torch Hose Reel Case - Black - 8855033
20 cu.ft. O2 Cylinder (empty) - 8800337
10 cu.ft. Acetylene Cylinder (empty) - 8800336
Acetylene Cylinder Wrench
Trilingual Kit Manual - 9505643
Applications
Up to 1 in. (25.4mm) plate with supplied tip(s)
Up to 4 in. (101.6mm) plate with optional larger tip(s) and acetylene cylinder
