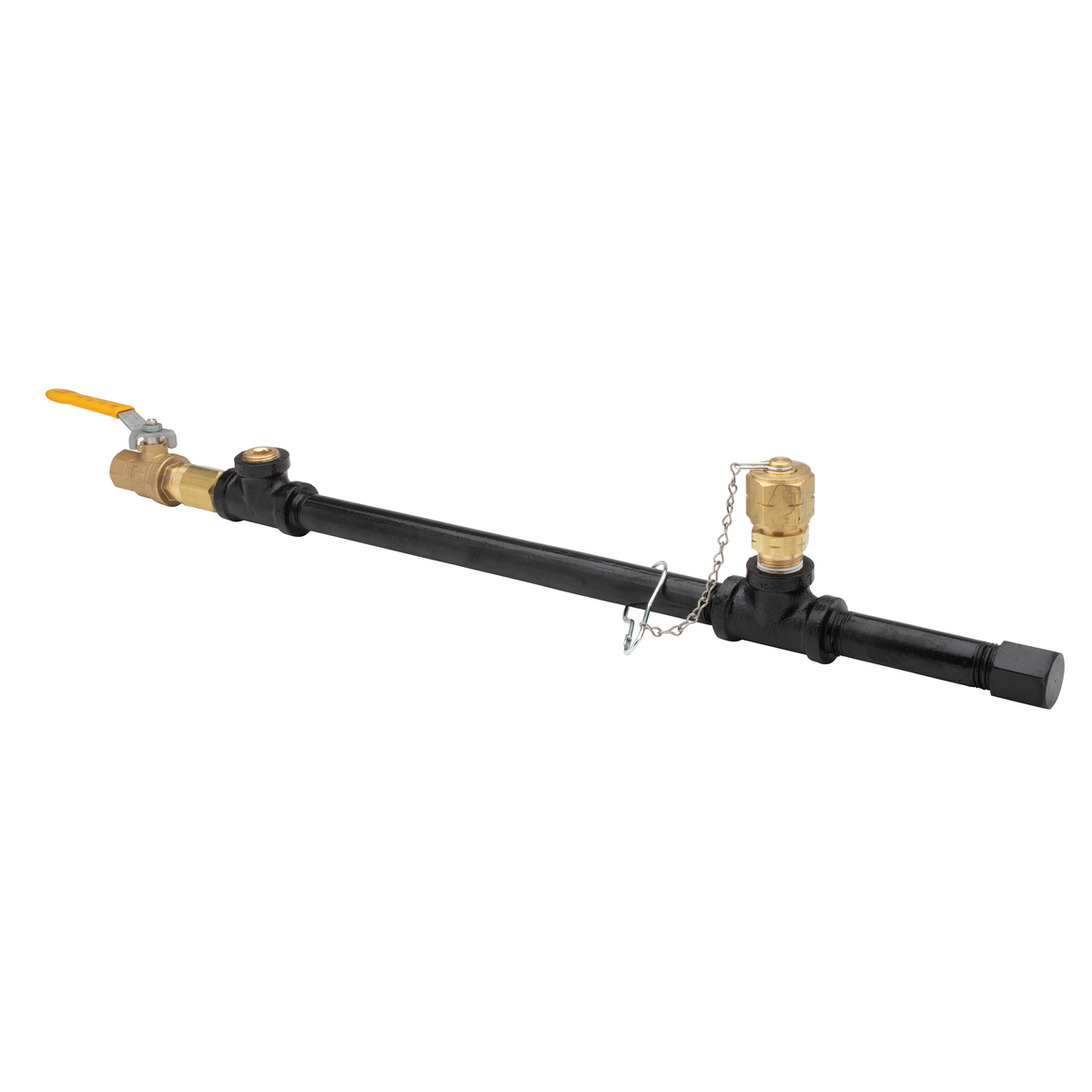

Harris® 1 Outlet 20" Steel And Brass Single Outlet 7/8" - 14 RH Station Drop

Harris® 1 Outlet 20" Steel And Brass Single Outlet 7/8" - 14 RH Station Drop

By
Harris Calorific

Airgas Part #:HCL4300805

Manufacturer Part #:4300805


$244.63 /Each
Each

Item Details

  • Harris® steel with black powder coated finish 20" long single station drop body and brass fittings with 1/2" NPT female inlet and 7/8" - 14" RH "C" male outlet connection for oxygen CGA-024 gas service.

Features

  • Steel with powder coated finish construction and brass fittings
  • One outlet
  • 20" long
  • 1/2" NPT (F) X 7/8" - 14" RH "C" (M) connections
  • 1/4" quick turn valve
  • 200 psig Maximum inlet pressure
  • Specific gas label included
  • Drip leg, hard cap and chain included
  • Use with oxygen

Specifications

  • Coated steel construction
  • Brass fittings
  • 20" length
  • 1/2" FNPT inlet
  • 7/8" - 14" RH "C" (M) outlet
  • 1/4" turn valve
  • Oxygen gas service
  • CGA-024

Includes

  • In-line shut-off valve
  • Hard outlet cap and chain
  • Drip leg
  • Labeled for specific gas type
  • Equipped with check valves

Applications

  • Low pressure pipelines
  • Factory gas lines

Product Attributes

Product Type

» Station Drop

Gas Service

» Oxygen

Number of Outlets

» 1

Length

» 20"

Material

» Steel And Brass

Thread

» 1/2" NPT Female

CGA Connection

» 024

Maximum Inlet Pressure

» 200 psig

» Show more details and specs
