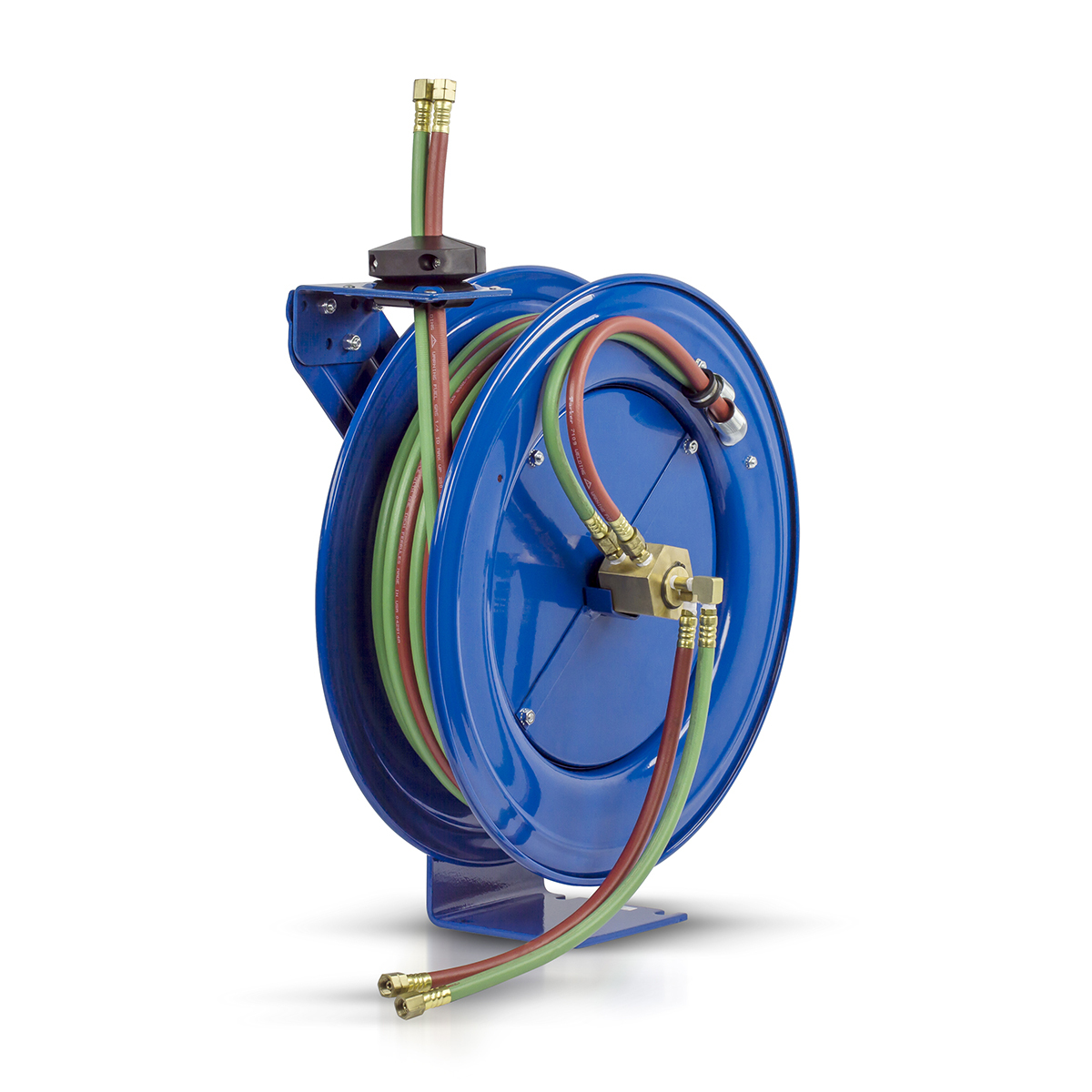

Coxreels® SHW Series Hose Reel For 1/4" X 100' Hose

By
Coxreels

Airgas Part #:CD0SHW-N-1100

Manufacturer Part #:SHW-N-1100


$881.00 /Each
Each

Item Details

  • Coxreels SHW-N-1100 Dual Hose Spring Rewind Hose Reel for oxy-acetylene: 1/4" I.D., 100' hose, 200 PSI

Features

  • WELDING GAS SWIVEL - External 90◦ full-flow dual ported brass swivel with VITON seals offering both connections from the same side of the reel. No need to remove the reel from its mount.
  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ dual axle support
  • MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, oxygen-acetylene welding hose, and sturdy permanently lubricated precision bearings.

Applications

  • Manufacturing plants
  • Maintenance, repair and operations
  • Welding / Service Trucks
  • Welding Shops
  • Garage Settings
  • Automotive and fleet maintenance
  • Pipelines
  • Mining, Constructions and Railroad operations

Product Attributes

Product Type

» Hose Reel

Cable/Hose Capacity

» 1/4" X 100' Hose

Size Description

» 25 1/2" H x 24" L x 10 1/4" W

Series/Model

» SHW Series

Weight

» 84 lb
